Product Details:
|
|
Place of Origin: | China(mainland) |
---|---|
Brand Name: | ADO |
Certification: | CE ROHS TUV UL |
Model Number: | AD-PAL66-40W |
Payment & Shipping Terms:
|
|
Minimum Order Quantity: | One Carton |
Price: | Negotiation |
Packaging Details: | 5 pieces in one carton |
Delivery Time: | 5 - 8 work days |
Payment Terms: | PayPal, Western Union, T/T, L/C |
Detail Information |
|||
Certificate: | UL | CCT: | 4000K |
---|---|---|---|
Lumen: | 4000LM | Power: | 40W |
Dimmable: | 0-10V | Size: | 603mm |
Highlight: | led ceiling panels,led flat panel |
Product Description

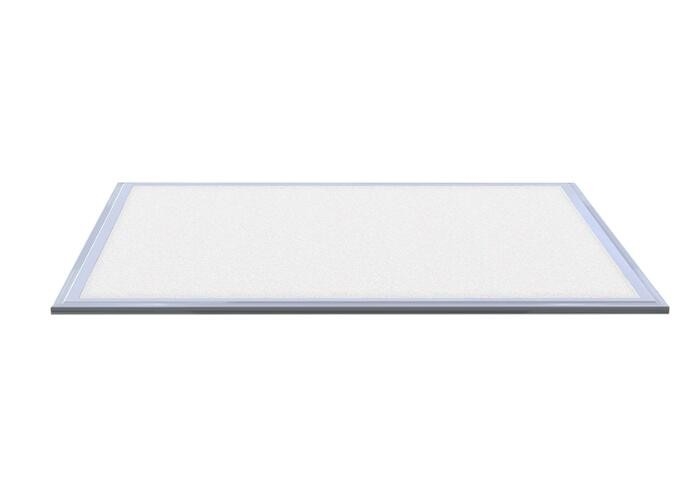

40watt Flat LED Panel Light 603mm Sliver 4000LM 4000K 0-10V Dimmable UL Listed
1. Description:
Ado LED Flat Panel Light have many different versions, Europe and North Amercia, North Amercia are UL and cUL approval.
The voltage is AC100-277V, driver brand is Lifud, this version is dimmable, dimmable mode is 0-10V dimming, it is non flicker, PFC is 0.9, which is very stable project.
The power is 40w for 603mm*603mm, led chip is SMD4014, light efficiency is 105Lm/W, light output is 4200LM.
The high color rendering index (Ra) 83-85 and with a comfortable and uniform light.
LED Beam Angle is 120 degree.
And we have warehouse in USA, so you can get our flat led panel light very soon.
2. Electronic Parameter
Product model | Watt. | Input Volt. | PF | Conversion efficiency | Actual power consumption |
PAL66-40w | 40W | AC100-277V,60H | >0.9 | >86% | 40W±10% |
3. Application:
Applications to general lighting, office buildings, shopping malls, restaurants, schools, families, factories and other indoor lighting.
4. Basic Parameter:
Product model | Category | Material |
Drive circuit |
LED type | Weight |
IP Rating |
Lifespan (hours) |
PAL66-40w | 603x603-40W |
Aluminum+PMMA +PS |
Lifud LED driver (dimming ) | 2835LED | 3.6KG | IP40 | 30000H |
5. Features:
1. Lifud LED driver, 0-10V dimming , Warranty for five years
2. Energy saving, high brightness, uniform lighting.
3. Professional circuit design, independent group work, can avoid single bad light effect on the overall effect of lighting.
4. Anti wave interference.
5. Quick start, no noise.
6. Laser Carving LGP (PMMA)
7. Lead free, environmental protection, in compliance with RoHS requirements.
8. With cULus and DLC certificates and 5 years warranty.
9. High luminous efficiency up to 100LM/W, very bright
10. High color rendering index (Ra) 83-85 and with a comfortable and uniform light
6. Optical Parameter
Product model | CCT | Light efficacy | Lumen output | LED beam angle | CRI(Ra) | SDCM |
PAL66-40w | 3985±275K | 105lm/W | 4200lm | 120° | ≥80 | ≤6 |
7. Why Choose Ado Lights?
1. Quality:
All of our raw materials and products are tested and inspected by our strict QC deparment, All finished products is with 48 hours aging test. And we offer 3 years warranty for our flat led panel light, because the high quality, We have got excellent worldwide reputation with our quick response and high quality items. It's our purpose that to let customers feel assured. We invite you to join in with our customers together sincerely. We have confindence that you will expand your business soon.
2. Service:
We are in led lighting filed for 6 years, each sales in our company were trained, they are responsible and professional, they will explain all products detail to you and help you solve problems, tell you the best project. You will get best items with least money. And we will do our best to meet your requirements, over 50 conutries customer's worked with us for a long time.
